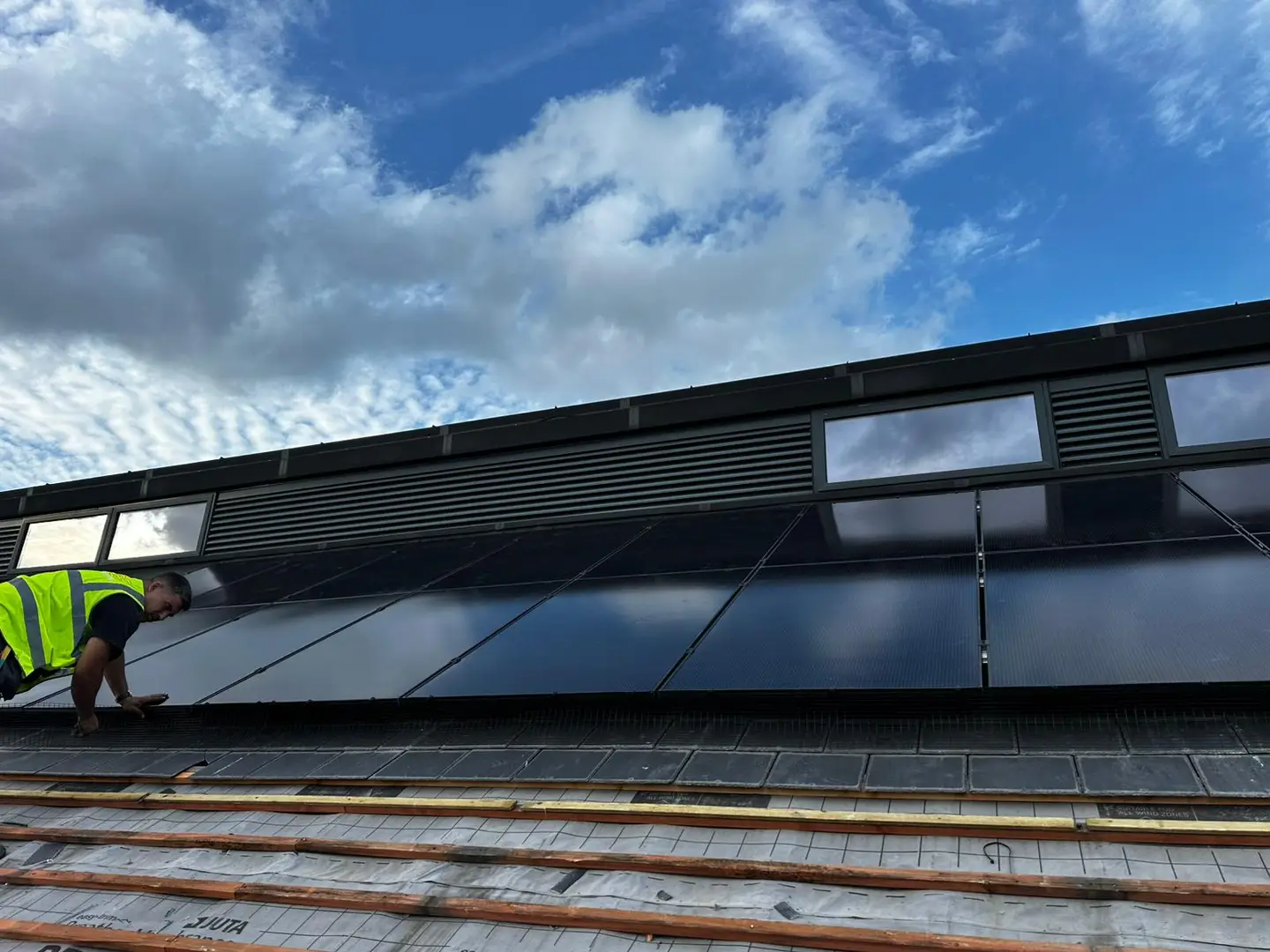

Solar System Upgrade at Merstham Community Hub, Surrey
Replacing a vulnerable system with a robust, high-performance installation built to last
Not every solar project starts from scratch. At Merstham Community Hub in Surrey, the challenge was not to install solar for the first time, but to replace a failing system and redesign it properly, addressing the structural and connectivity issues that had undermined the original installation.
Simcott Renewables was engaged by Surrey County Council to take over this project, assess the existing setup, and deliver a solution that would perform reliably for decades. In practice, this required a complete system removal, a redesigned mounting approach, upgraded components, and a creative solution to a connectivity problem caused by council IT infrastructure.

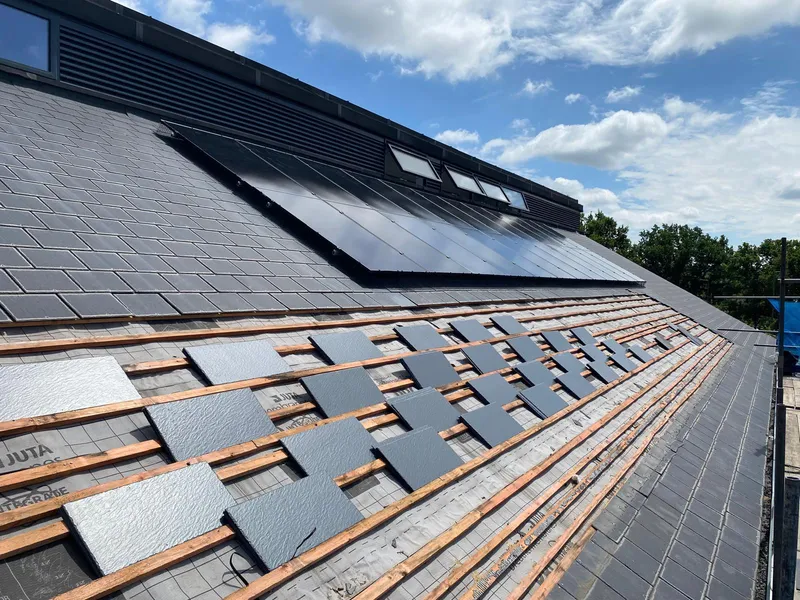

Vandalism risk and locked-down networks
The existing solar PV system at Merstham Community Hub had developed significant problems since its original installation. The panels had been positioned too low on the roof, placing them within reach and making them vulnerable to vandalism. Damage had already occurred, rendering several panels non-functional and requiring full system removal before any upgrade could begin.
Beyond the vandalism issue, the site presented a connectivity challenge. Surrey County Council's IT firewall prevented the system from connecting to standard monitoring networks, meaning there was no reliable way to track performance remotely using conventional methods.
As a result, the project required more than a simple panel swap. It needed a thorough reassessment of positioning, mounting, components, and connectivity before a credible solution could be designed.
Removal, redesign, and standalone monitoring
We began by removing the existing damaged system in full, starting with a clean slate rather than attempting to work around compromised components.

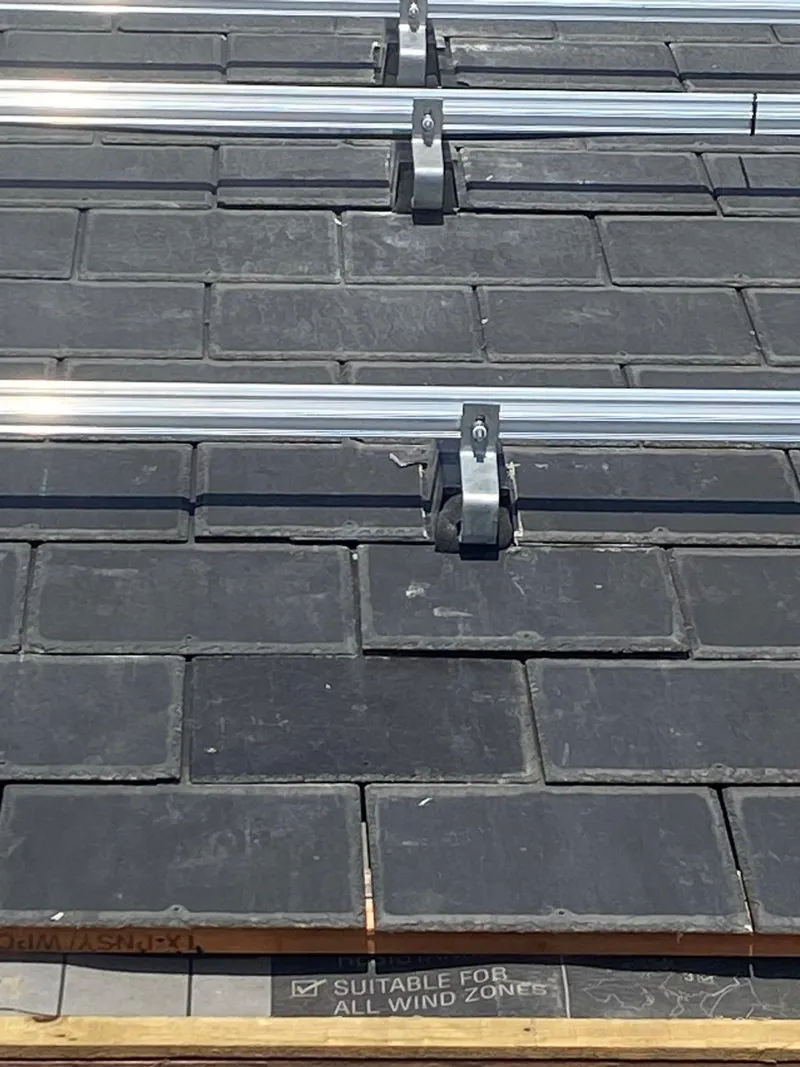

The redesigned installation positioned the panels higher up on the roof, significantly reducing the risk of future interference or vandalism. For the slate roof, we installed the Genius Solar Flashing Kit, our preferred method for slate applications, providing a fully watertight solution around all mounting points and protecting the roof structure beneath.
To support the increased panel capacity of the new system, we upgraded to a 10kW Solis inverter, chosen for its reliability and low maintenance profile. The Solis range is well suited to sites where ongoing intervention needs to be minimised.
To overcome the connectivity challenge, we supplied a 4G dongle, providing independent system monitoring without any reliance on internal Wi-Fi or council network infrastructure. This gives the site a standalone five-year data solution that operates entirely outside the council's IT environment.
System Specification
- Panels: 24 × 450W Canadian Solar panels
- Inverter: 10kW Solis inverter
- Mounting System: Genius Solar Flashing Kit (slate roof application)
- Connectivity: 4G dongle (5-year data solution)
- Roof Type: Slate, on-roof system
- Location: Merstham, Surrey (Surrey County Council site)
Performance and Results
The system is outperforming initial forecasts.
- Estimated annual generation: 9,003 kWh
- Projected Year 1 generation: approximately 10,515 kWh
- Annual savings: approximately £2,500
- Payback period: approximately 5 years 6 months
- Self-consumption rate: High, due to the site's consistent energy demand
- System lifespan: 25 to 30 years
The combination of high-output Canadian Solar panels and an optimised roof position has delivered generation figures above the original forecast. The high self-consumption rate reflects the hub's ongoing operational energy demand, meaning a large proportion of the energy generated is used directly on site rather than exported.
Why This Project Matters
The Merstham Community Hub project illustrates something that is often overlooked in commercial solar panel installation discussions: the importance of getting the design right, not just the components.
The original system failed not because solar does not work, but because the installation was poorly positioned and inadequately specified for the site's specific circumstances. By approaching the upgrade properly, assessing the vandalism risk, rethinking the mounting position, specifying the right inverter, and solving the connectivity problem independently, we delivered a system that now significantly outperforms what came before it.
Additionally, this project demonstrates that solar panels for business premises managed by public sector organisations and local authorities are not inherently more complex than private sector installations. They simply require an installer with the experience and flexibility to work within the specific constraints of that environment.
For community hubs, council-managed facilities, and similar sites across Surrey and beyond, projects of this kind represent a strong long-term investment. With a payback period of just over five years and a system lifespan of 25 to 30 years, the financial case is clear. The energy independence and protection from rising costs are equally valuable for sites that depend on keeping operational costs under control.
Project Summary
| Detail | Specification |
| Client | Merstham Community Hub, Surrey County Council |
| Location | Merstham, Surrey |
| Roof Type | Slate (on-roof system) |
| Panels | 24 × 450W Canadian Solar |
| Inverter | 10kW Solis |
| Mounting | Genius Solar Flashing Kit |
| Connectivity | 4G dongle (5-year data) |
| Est. Annual Generation | 9,003 kWh |
| Projected Year 1 | ~10,515 kWh |
| Annual Savings | ~£2,500 |
| Payback Period | ~5 years 6 months |
Considering solar for a community building or public sector site?
If you manage a community hub, council facility, village hall, or similar site and are considering solar, the Merstham project is a useful reference point. It shows what is achievable when a system is properly designed and correctly installed, even when the starting point is a failing legacy installation.
At Simcott Renewables, we are experienced in commercial solar across Surrey and the wider UK, delivering projects on community buildings, public sector sites, and business premises of all types.
We provide:
- Full site assessment and system design
- Removal and replacement of existing failed or underperforming systems
- MCS-certified installation for compliance and warranty purposes
- Independent connectivity solutions where standard monitoring is not possible
- High-quality components from trusted manufacturers including Canadian Solar and Solis
- Transparent pricing and long-term performance projections
Based in Essex and operating nationally, we bring the same standard of technical care to every project regardless of location. If your site has specific constraints, unusual roof types, connectivity challenges, or a legacy system that is no longer performing, we have the experience to assess it honestly and design a solution that works.
